Our Biogas upgrading technologies are highly reliable and well proven.We design the latest technological solutions and build top quality facilities required for these services. We also provide 3D views of the layout and animated 3D videos enabling our customer to make a virtual visit to the plant.
BIOGAS UPGRADING & BOTTLING

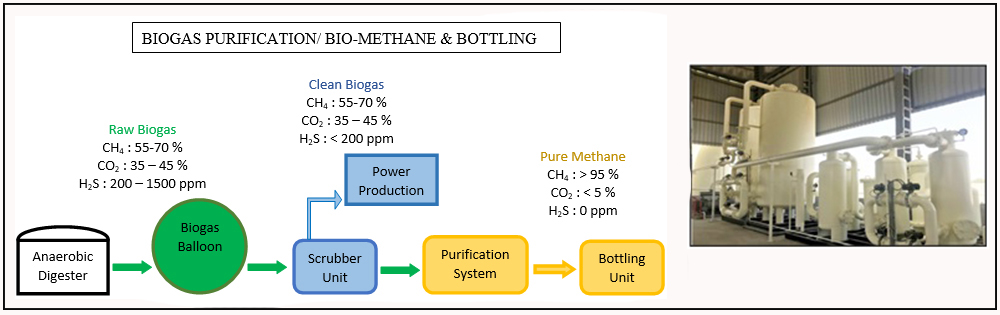

Removal of CO2 and other impurities from Biogas gives purified Methane( BioCNG®) for bottling to use in domestic or industrial applications. Biogas composition may vary from substrate to substrate, feed stock composition fed into reactor for degradation of organic compounds. We will provide BioCNG® solution based on client requirements / demand on particular locations.
We offer turnkey solutions for the BioCNG® (Bio- Methane) >95%& Bottling technology. There are many methods available & each has its own advantages and disadvantages but most commonly used method is PSA techniques.
1. Pressure Swing Adsorption (PSA) : An adsorption technology operated under pressure of 3-10 bar to remove Moisture, CO2, and H2S from raw biogas.
2. Water Scrubber: In a Water Scrubber, CO2 & H2S is separated from the raw biogas and dissolved into the water in the absorption column by using high pressure, normally 6-10 bar.

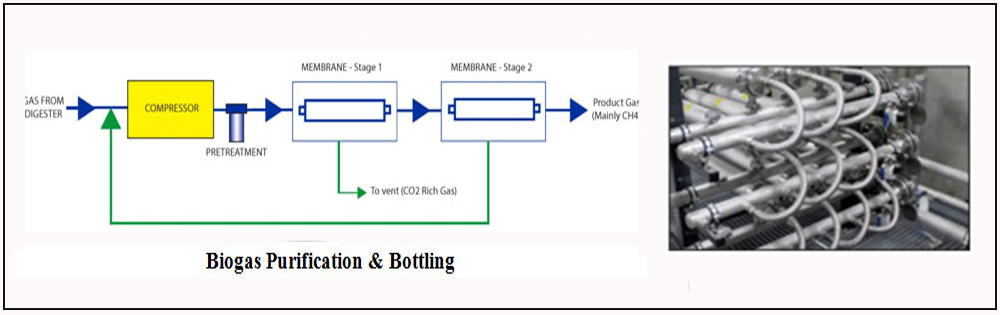

3. Membrane Separation: A membrane technology for Upgradation of biogas and operated at high pressure of 5-20 bar.
4. Cryogenic Separation: Here, Methane and Carbon dioxide are separated by gradually cooling down the raw biogas. All compounds with higher condensation temperature than methane, such as water, hydrogen sulphide, siloxanes and nitrogen, can be separated in this process.
5. Amine Scrubbers: The upgrading unit essentially consists of two columns (K1 & K2). The heart of the upgrading process is the absorber column K1. In this column, the raw gas is washed with a water-amine combination. In this process, the amine absorbs the CO2 and H2S and thereby cleans the gas. The water-amine solution is transferred to a stripper-column K2, where the CO2 and H2S are stripped from the solution to ensure the reuse of the solution.
Biogas, like Liquefied Petroleum Gas (LPG) cannot be converted into liquid state under normal temperature and pressure. It liquefies at a pressure of about 47.4 Kg/cm2 at a critical temperature of -82.10C. Removing carbon dioxide, Hydrogen Sulphide, moisture and compressing it into cylinders makes it easily usable for transport applications as fuel for vehicles & also for stationary applications. Also raw biogas can be compressed and bottled for remote applications of biogas. The compressed biogas can be used for injection into CNG Grid, Fuel for Vehicles, household and industrial application of biogas. It creates revenue when generated and sold for remote applications.
BIOGAS TO DIESEL /JET FUEL
We offer consultancy for converting biogas to liquid fuels. The fuel may be diesel or jet fuels. The chemical and physical properties of the fuels are similar to the fossil fuels, thus we can directly replace the natural occurring fossil fuel diesel with the converted diesel without any modifications of the existing engines of the vehicles/ airplanes.
